Specifications:
Support audio format: LPCM2.0/DTS/AC3
Peak wavelength: 650nm
Max baud rate: 16Mbps
Output cable distance: ≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current: 100mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
Operating Temperature range: (0 to +40℃)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 94x52x20 (mm)
Weight: 151g
Features:
Four ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.
Audio format support : LPCM2.0/DTS/AC3
No loss of quality,Support signal retiming,
Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
The input control can through R/M and also can directly press the button
Support last time working state memory when power off
Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
Application:

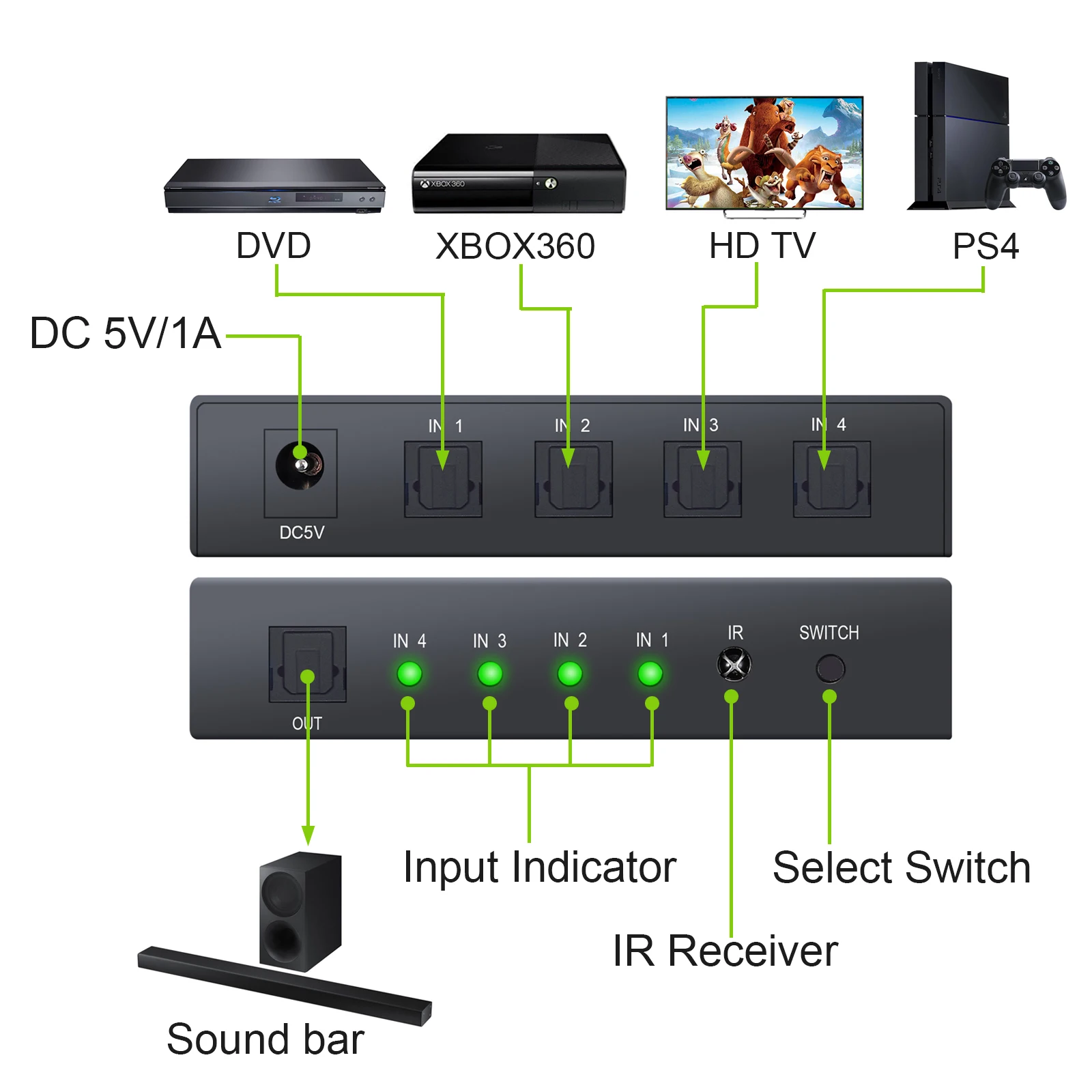

You can connect up to four devices (e.g. receiver, computer, game console like PS3 / PS4 or Xbox / Xbox One, Blu-ray player, Apple TV, etc.) to a terminal device (sound bar, receiver, speakers, HiFi-system, etc.) at one Toslink port using this Toslink switch.
Package:
1 x Toslink Switcher

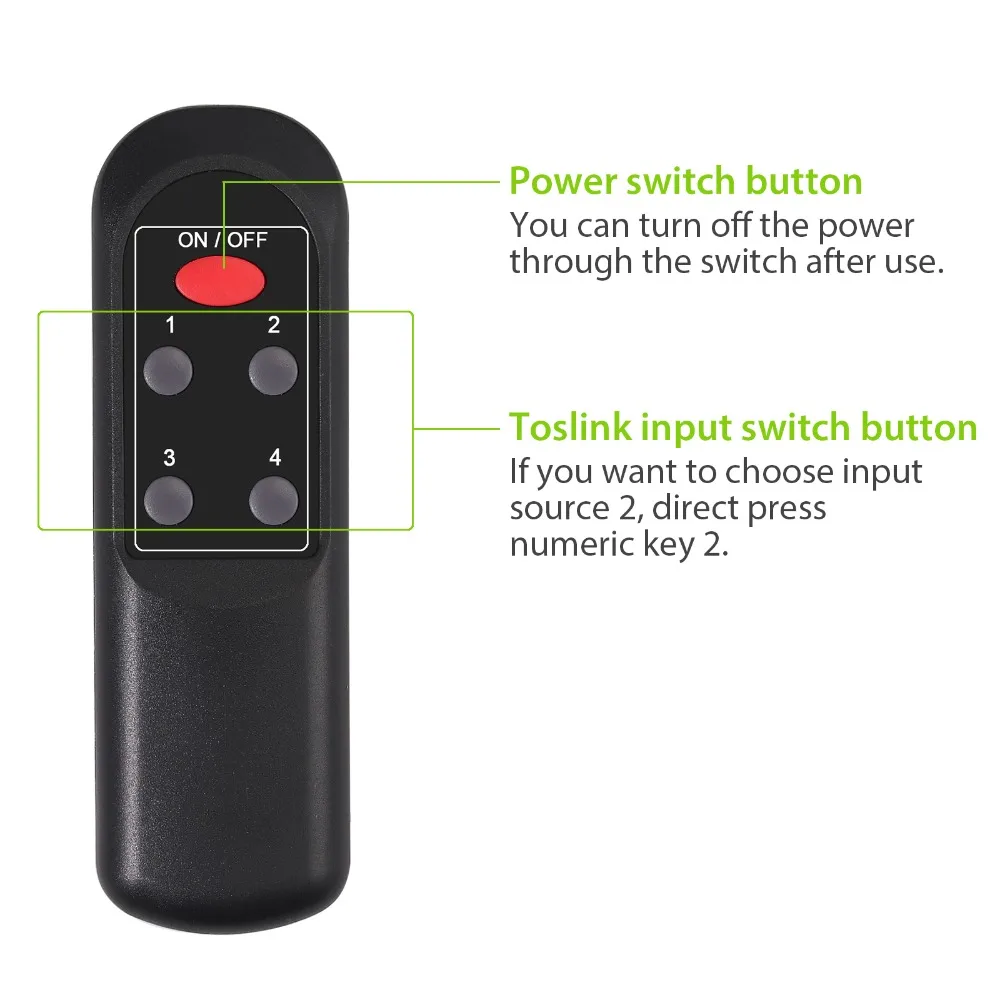

1 x Remote Control Unit
1 x USB cable
1 x 1m Toslink cable (Optical cable)
1 x Operation Manual
SKU | -1005002611187589 |
---|---|
Product Condition | New |
Band Width | 12mm |
