New Satellite FinderTerrestrial Finder GTMEDIA V8 FInder Pro DVB-S2X/S2/S/T2/T/C MPEG-2/4 H.264/H.265 (10 bit) combo meter

V8 Finder Meter Pro DVB COMBO

GTMEDIA V8 Finder Pro is a DVB-S2X/S2/S/T2/T/C and MPEG-2/4 H.264/H.265 (10 bit) compliant handheld combo meter, With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units.

Specificatiion

DVB-S2X/S2/S,DVB-T2/T,DVB-C,MPEG-2,MPEG-4,H.264/H.265(10 Bit)
Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E)
Support VCM, ACM, multi-stream, T2MI, Multi-PLP
Supports IKS: CCCAM, NEWCAM, MGCAM

DVB-S/S2/S2X INPUT/DEMODULATION

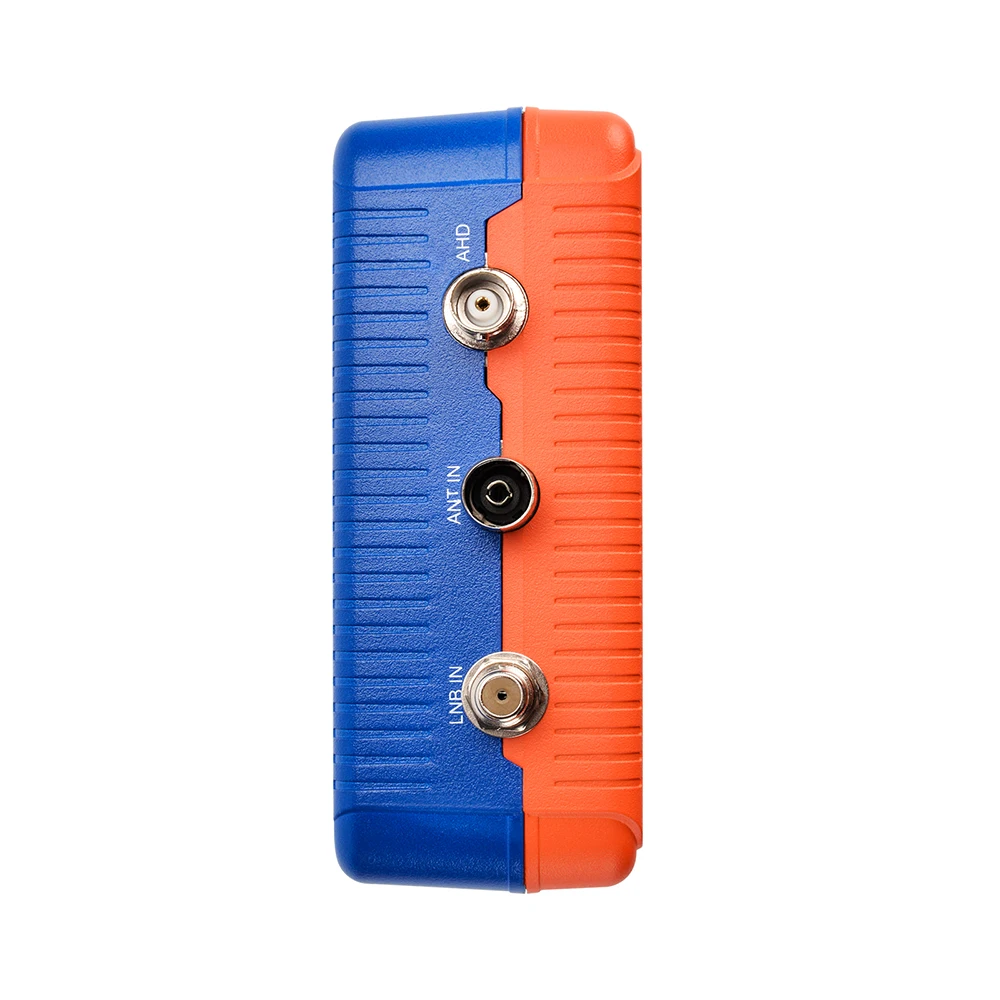

Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: ‐65 to ‐25 dBm
Band Switch Control: 22KHz
LNB Suppl: 13V/18V, Max 350mA
Demodulation Type: DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate: 2

DVB-T2/T/Cable INPUT/DEMODULATION

Connector Type: Female Type
Input Frequency: 48 to 862 MHz
Signal Input Level: ‐80 dBm(MAX)
ANT Supply: 5V DC @ 120mA MAX
Demodulation Type: QPSK,16QAM,32QAM,64QAM,128QAM,256QAM

Key Features:

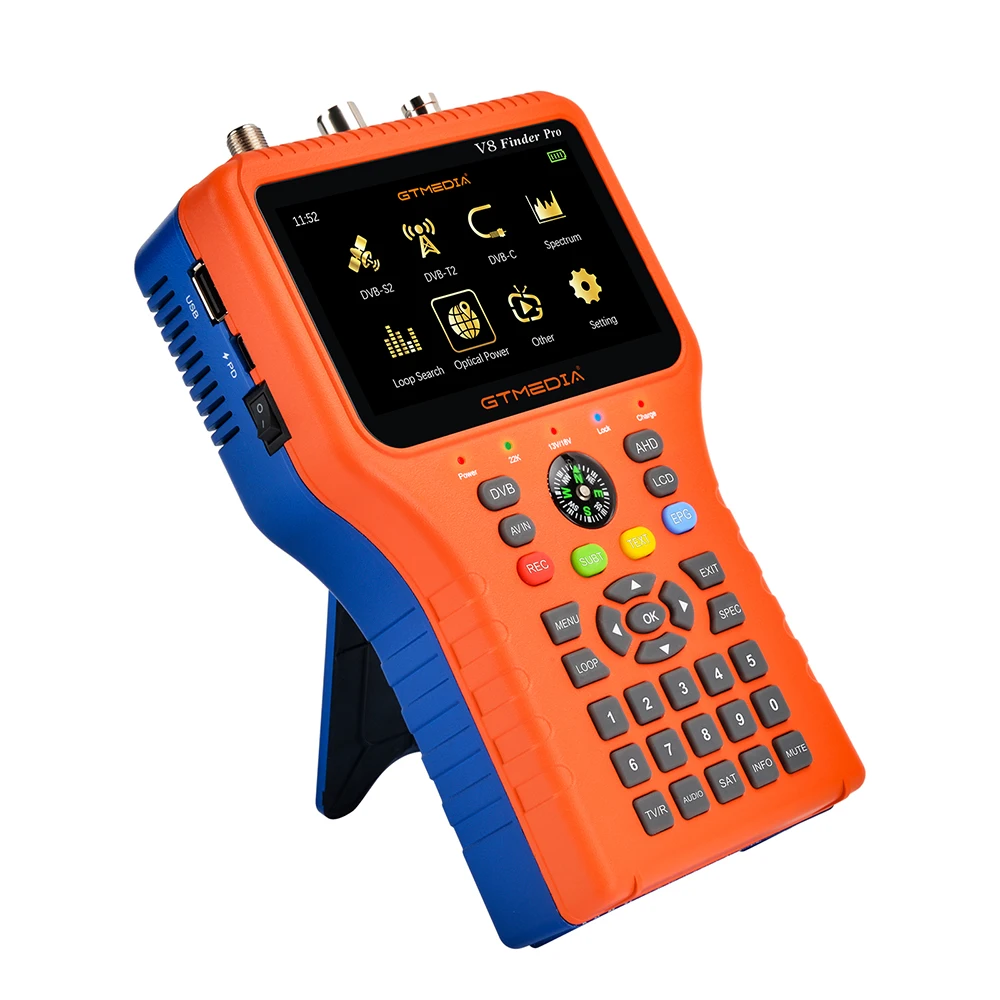

1.4.3 Inch High Definition TFT LCD Screen
2.Fully DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4 compliant
3.Support H.264/H.265(10 Bit) Hardware decoding
4.Digital measuring device for signal strength and quality.Supports presetting all satellite information
5.Support Loop Search
6.Constellation analyzer
7.Spectrum analyzer
8.Supports scan of Auto, Blind, Manual or NIT
9.Sound for Locking Signal
10.Auto Calculate Angle of AZ,EL
11.Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
12.Speaker Integrated

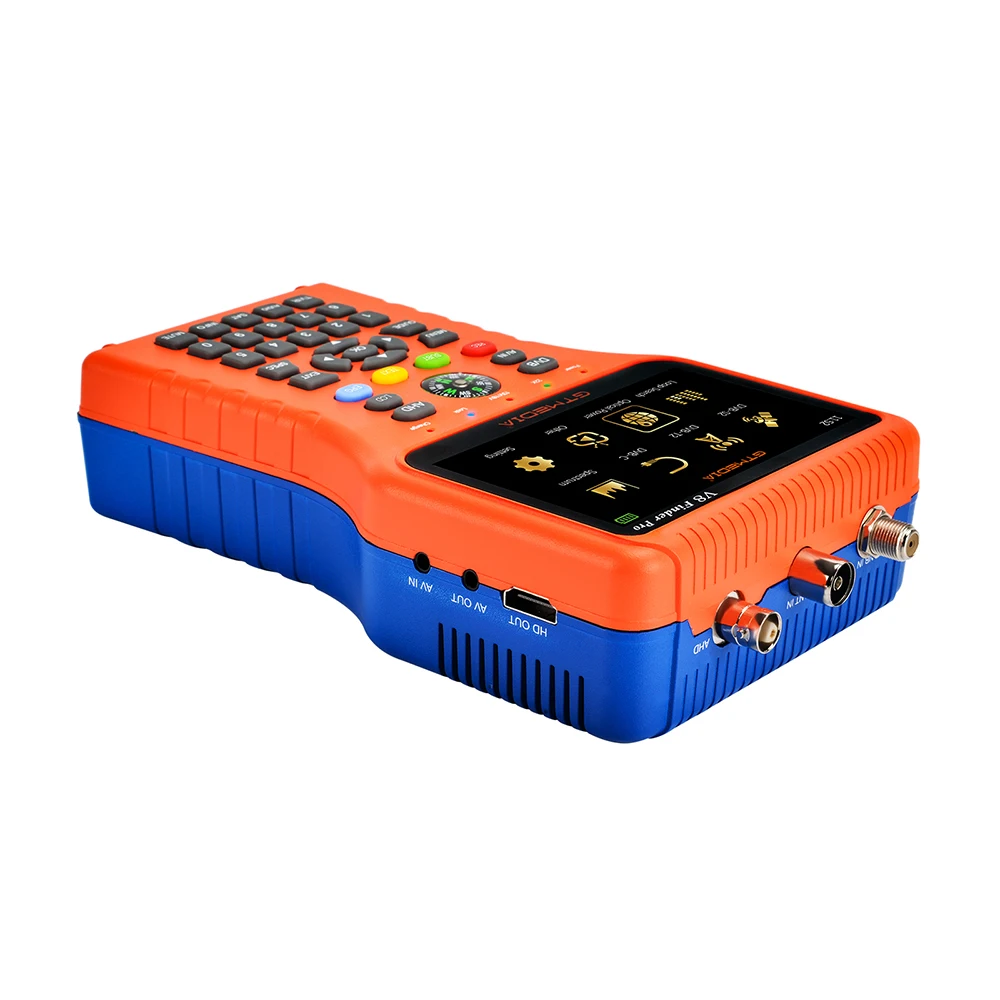

13.Support both AV out and AV in
14.Support both HDMI out
15. Supports AHD camera input
16.Support compass function
17.Support real-time power display, with low power reminder
18.Supports Youtube for USB wifi 2.4G
19.LNB short protect
20.7.4V/4000mAh Li-ion Battery Included
21.Software upgrade via USB port
22.Easy to carry

AUDIO/VIDEO PROCESSING

1.Video decompression: MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder

2.Resolving rate: PAL-25 frame@7200*576, NTSC -30 frame@720*480

3.Singnal compatibility:Support conversion for different video formats

4.Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion

5.Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II

6.Audio Output Mode: Stereo, Mono, R/L

DATA SERVICE PORT

Conector : USB
Data Protocol: USB 2.0 interface
File Management System: NTFS, FAT32, FAT16
File Format: Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma,mp3
Photo: jpg,jpeg,bmp,img
PVR Option: Support recording TS files
WIFI Option: Support networking via USB WIFI

POWER SUPPLY

Li-Lon Battery: 7.4V/4000mAh(The machine behind labeling shall prevail)
Adapter: OUTPUT: DC 9V/2.5A, INTUPT:100～240VAC 50/60Hz(Will be subject to actual configuration)
Power Consumption: Max.10W

PHYSICAL CHARACERSTICS

Product Dimension Size(W*D*H): 123*204*45(mm)
Product Net Weight: 0.6kg
Packing box size(W*D*H): 260*200*57(mm)
Package weight: 0.85kg
Temperature: Operation 0～+45℃; Storage -10~+60℃
Humidity: 20~90%, non-condensed
